This fully automatic horizontal autoclave is highly versatile and fully optimized for sterilizing high-temperature and high-humidity resistant loads: Medical & Healthcare: Surgical instruments, medical devices, and textile dressings. Laboratories & Research: Glassware, laboratory utensils, and hydroponics/culture medium preparation. Pharmaceutical & Biotech: Production tools, containers, and liquid bottling solutions.
The Fully Automatic Horizontal Autoclave is a high-performance, horizontal cylindrical pressure steam sterilizer designed to deliver professional-grade, saturated steam sterilization. Equipped with an advanced microcomputer control system, an integrated micro-printer, and an automated drying function, this 200L autoclave ensures a seamless, safe, and highly efficient sterilization cycle for demanding medical, laboratory, and industrial environments.

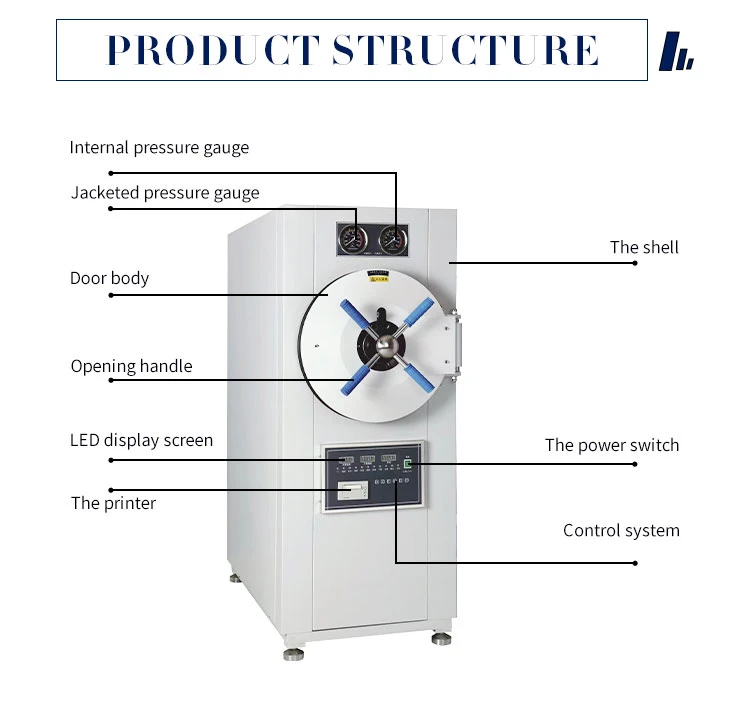

Fully Automatic Horizontal Autoclave Structure
| Technical data | WS-150YDB fully automatic horizontal autoclave |
| Sterilizing chamber volume | 150L,φ440*1000mm |
| Working pressure | 0.22 MPa |
| Working temperature | 134℃ |
| Adjustment of temperature | 105℃ - 134℃ |
| Time of sterilization | 0-99 min |
| Time of drying | 0-99 min |
| Heat average | ≤± 2℃ |
| Power | 9KW/380V 50Hz |
| Dimension | 1400*650*1600 |
| Transport dimension | 1560*820*1820 |
| G.W/N.W | 430/340 KG |
1.Intelligent Automation: The entire sterilization process-including automated water inlet, air purging, sterilization timing, steam exhaust, and drying-is fully controlled by a smart microcomputer system, minimizing human error. 2.Dual-Layer Energy Efficient Structure: Featuring a high-quality stainless steel chamber and a steam jacket wrapped in high-density glass wool insulation. This structural design ensures rapid pre-heating, excellent heat uniformity, and massive energy savings.
3. Multi-Tiered Safety Interlock System: Engineered with strict compliance for pressure vessels. The mechanical door utilizes a radiation bar rotary disk with a secondary self-lock, automatically locking when the internal chamber pressure exceeds 0.027MPa to prevent accidental opening.
4.Advanced Dry Function: Comes with a dedicated dressing drying mode, making it perfect for drying textile packs and porous loads post-sterilization.
5.Real-time Data Logging: Built-in micro-printer automatically saves and prints sterilization records (parameters, dates, and times) to ensure full medical-grade traceability.
