Tabletop Sterilizer Structure

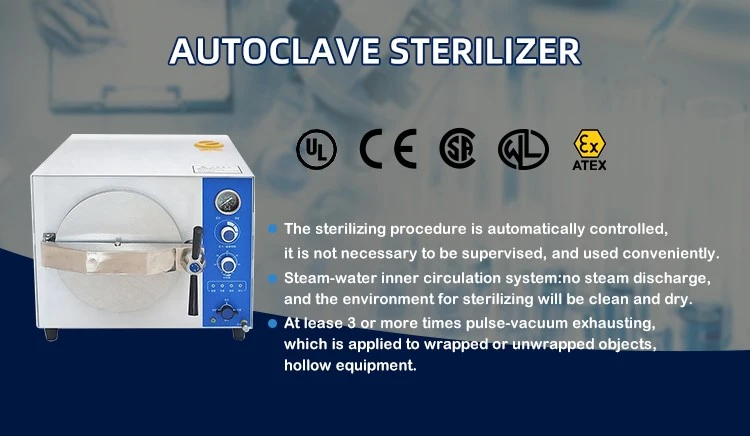

Available with chamber capacities of 20 or 24 liters, this benchtop sterilizer is designed for high-turnover environments-such as dental and orthodontic clinics, veterinary practices, tattoo and piercing studios, and outpatient departments requiring the rapid processing (4–6 minutes) of unwrapped solid instruments. Simply set your preferred temperature and timer, press start, and let the unit handle the rest-from automatic cooling and air evacuation to the final audible alert signaling that instruments are ready for unloading.
Featuring intuitive status indicator lights, a corrosion-resistant stainless steel chamber, and multiple independent safety systems, this compact, countertop-friendly unit delivers stable, reliable, and clean sterilization performance.
| MODEL TECHNICAL | LPTM-XB20J | LPTM-XB24J |
| Sterilizing chamber volume | 20L(φ250*420 mm) | 24L(φ250*520 mm) |
| Maximum working pressure | 0.22Mpa | |
| Maximum working temperature | 134℃ | |
| Adjustment of temperature | 105-134℃ | |
| Timer | 0-60 min | |
| Chamber temperature equal | ≤ ± 1℃ | |
| Source power | 1.5KW/AC 220V 50Hz (AC110V 60HZ) | |
| Sterilizing plate | 340*200*30 mm (3 piece) | 400*200*30 mm (3 piece) |
| Dimension | 480*480*384 mm | 580*480*384 mm |
| Package dimension | 700*580*500 mm | 800*580*500 mm |
| G. W/N.W | 44/40 kg | 50/45 kg |
Tabletop Sterilizer Details
Tabletop Sterilizer Features
1.Indicator light indicates working state.
2.For 4~6 minutes rapidly sterilizing.
3.Sterilizing temperature and time can be preset.
4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
5.Over temperature & over pressure auto-protection.
6.Safe protection of water lacking.
7.Exhaust the cool air automatically.
8.With three stainless steel sterilizing plates.
9.The chamber of the sterilizer is made of stainless steel.
10.Automatically shut off with beep reminding after sterilization.
Tabletop Sterilizer Applications
Autoclaves used for sterilizing medical devices are widely employed in fields such as microbiology, medicine, podiatry, tattooing, body piercing, veterinary medicine, mycology, the funeral industry, dentistry, and prosthetics.
These devices vary in size and functionality depending on the items to be sterilized. Typical sterilization loads include laboratory glassware, other equipment and waste, surgical instruments, and medical waste.
Items for sterilization include: unwrapped or wrapped instruments, surgical instruments, glassware, liquids, culture media, rubber products, surgical gowns, dressings, gloves, etc.
